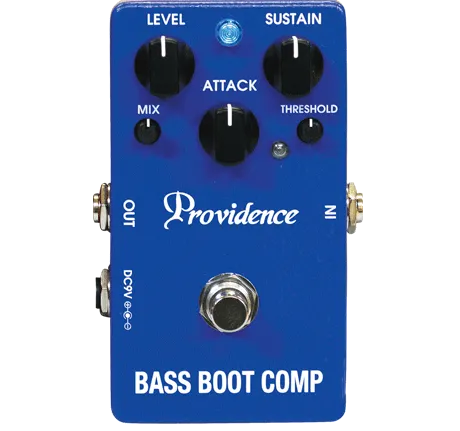

BASS BOOT COMP BTC-1
Bass Compressor
Loaded with Threshold and Mix control to make the best use of bass' dynamics and able to create various sounds.
It also able to adjust the volume without losing player's sound character by smooth compression without extra tonal change.
- ・Controls : LEVEL, ATTACK, SUSTAIN, MIX, THRESHOLD
- ・Jacks : Standard 1/4-inch phone jacks (Input/Output), DC9V Input jack (AC adaptor jack)
- ・Power : 9V battery, AC adaptor
- ・Power consumption : DC9V approx. 25mA (with effect turned ON)
- ・Size : 115(D) X 73(W) X 50(H)mm
- ・Weight : Approx. 230g (without battery)
Detailed Information: BASS BOOT COMP BTC-1
The Bass Boot Comp is a multifunctional compressor like a rack-mount typed one with the LED indicator which helps judge gain reduction level by sight. It also able to adjust the volume without losing player's sound character by smooth compression without extra tonal change.
Various compression patterns
The Bass Boot Comp is a compressor pedal for bass that achieves clear, bright and smooth compression with dry signal's lively sound. The Mix control enables spirited and unique compression.
More expression range with the Mix control
It enables to control the output ratio of the compression sound and dry sound while retaining dry sound's nuance and delivers subtle touch nuance of the player's core sound which is difficult to do by just a compressor alone. Of course the player is able to use this pedal as a regular compressor. Adding dry sound to your compressed sound creates more openness to your sound, and adding compression to your dry sound gives more consistency. Its versatility helps player to have more option to have their favorite sound.
Threshold Control
It controls the reference point for your pickups' output and/or picking strength. By combining it with attack and sustain, it enables to create from thick and deep sound to speedy compression sound with enhanced attack.
Visually Recognizable Gain Reduction
The LED indicator helps judge gain reduction level by sight. When strong compression is engaged, the LED blinks brighter and when less compression is engaged, the LED blinks darker.
ANADIME BASS CHORUS ABC-1
Bass Chorus
An analog chorus specifically tuned for bass, using a BBD for the delay element. It supports chorus sounds in various situations, such as thick bass phrases, chord playing using a wide range, and high-pitched solos. The 3-step DEEP (mode) switch allows you to change the sense of depth in the sound.
- ・Controls : DEPTH, SPEED, HPF, DEEP
- ・Jacks : Standard 1/4-inch phone jacks (Input/Output), DC9V Input jack (AC adaptor jack)
- ・Power : 9V battery (1), AC adaptor
- ・Power consumption : DC9V approx. 17mA (with effect turned ON)
- ・Size : 115(D) X 73(W) X 50(H)mm
- ・Weight : Approx. 220g (without battery)
Detailed Information: ANADIME BASS CHORUS ABC-1
The ABC-1 Anadime Bass Chorus employs a BBD (Bucket Brigade Device) analog delay line in an analog chorus effect specially tuned for bass guitar. The ABC-1 offers outstanding chorus sound for a variety of bass performance situations: from heavy low-end phrases through wide-ranging chords to solos in the higher register.
The 3-way MODE Switch Enables to Create A Sound With Variety
A 3-position DEEP mode switch provides variations in the perceived dimensional depth.
The High Pass Filter
A high-pass filter (HPF) provides extra control over the chorus effect in the lower frequencies, allowing stable pitch to be maintained in the low-frequency range even when a deep chorus effect is applied.
Equipped with HPF/High-Pass Filter
The High Pass Filter (HPF) allows you to control the amount of wobble in the low frequencies. Even when a deep chorus is applied, operating the HPF can stabilize the pitch in the low-frequency range.
S.C.T Circuit
In standard "true bypass" circuits the instrument signal passes through two switch contacts when bypassed. In the Anadime Bass Chorus the signal only passes through one switch contact when bypassed (Single Contact True Bypass), for unprecedented signal quality as well as reliability.
D.C.G. Circuit (Double Contact Grounding)
A Double Contact Grounding Circuit ensures that the sleeve of the plug inserted into the output jack is grounded at two contact points. Increased ground contact area minimizes the possibility of intermittent contact, while also contributing to maximum sonic quality.
Multi-function LED
In addition to indicating the pedal's on/off status, the ABC-1 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

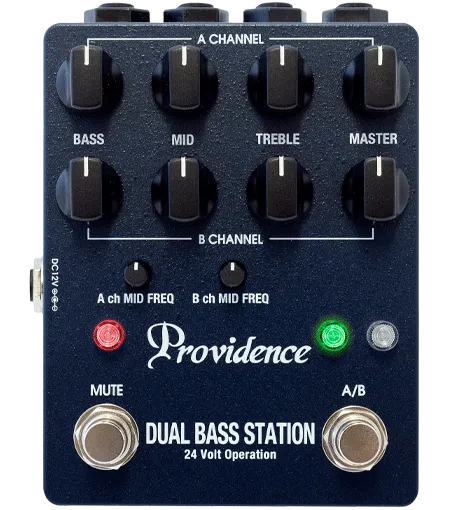

DUAL BASS STATION DBS-1
2ch Bass Preamp
This is a bass preamp with two inputs and a 3-band EQ and MASTER section for each channel.
The parts through which the audio signal passes are designed with a focus on sound quality, boasting specs comparable to high-end audio. The 3-band EQ section supports various music genres and playing styles, and the mid-range, in particular, is a parametric equalizer, enabling detailed sound shaping.
- ・Controls : BASS, MID, MID FREQ, TREBLE, MASTER / A・B each chanel, MUTE, A/B
- ・Connectors : Standard 1/4-inch phone jacks (IN-A, IN-B, OUT, TUNER), DC12V input jack
- ・Electrical characteristics : BASS 60Hz±14dB peaking/MID 150Hz～1kHz±14dB peaking/TREBLE 3kHz±14dB peaking/MASTER -∞～+10dB/Output noise level -95dBu or less (IHF A.W.T.D)/Harmonic distortion 0.01% or less (Output 0dBu)
- ・Power Supply : Supplied AC adaptor(PAP-712DCJ for North America, PAP-712DCE for Europe, PAP-712DCU for UK)
- ・Power Consumption : DC12V, 80mA
- ・Dimensions : 122(D)x101(W)x58(H)mm
- ・Weight : Approx 370 g, not incl. AC adaptor.
Detailed Information: DUAL BASS STATION DBS-1
The Dual Bass Station Bass Preamp features two inputs (A/B) and independent EQ-Masters for each input. When only “IN-A” is used, two different presets can be used by switching channels from A to B.
EQ Section
Both channels feature versatile 3-band equalizers that are ideal for use with a wide range of musical genres and playing styles.
Furthermore, the mid range frequency has a parametric equalizer that helps create a sound with variety.
EQ Section
The EQ section is 3-band to accommodate various music genres and playing styles. The mid-range, in particular, is a parametric equalizer, enabling detailed sound shaping.
24 volt internal circuitry
The internal circuitry is powered by a 24-volt supply, allowing the expressive dynamic range of bass guitar to come through with maximum impact and clarity.
Overwhelming sound quality
This unit is equipped with high quality components that are used solely for audio equipment to achieve ultra low noise (over S/N -95db (IHF A.W.T.D)) and low distortion rate (under 0.01%) for players that demand the best in their signal chain.
Excellent operability
The EQ's curved volume is specifically designed for linearity and usability.

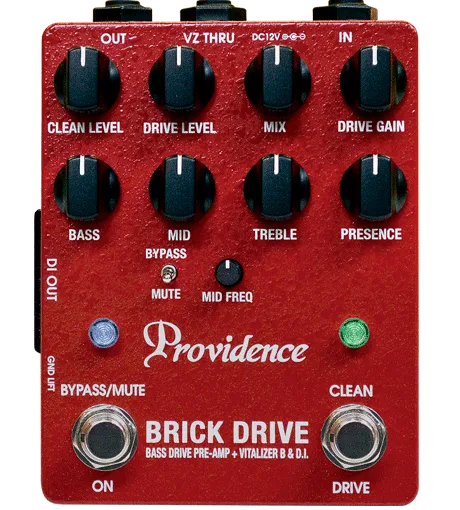

BRICK DRIVE BDI-1
Bass Drive Preamp + D.I.
By mixing the DRIVE sound with the clean sound adjusted by the EQ, the nuance of distortion is changed. A wide range of settings is possible, such as adding clean sound to express the clarity of the bass line even with strong distortion, or adding distortion to the main clean sound to give it a sense of thickness. Furthermore, the Vitalizer B outputs a tight and clear sound even in the low frequencies. Equipped with a balanced output, it flexibly supports settings with PA systems during live performances and recording.
- ・Controls : CLEAN LEVEL, DRIVE LEVEL, MIX, DRIVE GAIN, BASS, MID, MID FREQ, TREBLE, PRESENCE, BYPASS/MUTE MODE SW, BYPASS/MUTE-OFF SW, CLEAN-DRIVE SW, GND LIFT SW
- ・Connectors : Standard 1/4-inch Phone JACK(IN, OUT, VZ THRU), XLR TYPE(DI OUT), DC12V INPUT
- ・Power Supply : Supplied AC adaptor(PAP-712DCJ for North America, PAP-712DCE for Europe, PAP-712DCU for UK)
- ・Power consumption : DC12V 80ｍA
- ・Size : 125(D) X 97(W) X 50(H)mm
- ・Weight : Approx. 380g
Detailed Information: BRICK DRIVE BDI-1
The Brick Drive BDI-1 features the Vitalizer B circuit on input section which delivers more vivid and clear sound by tightening up the bottom end that tends to get blurred with most other processors and effects. Also, VZ THRU output sends the signal that went through Vitalizer B circuit and converted to low impedance signal. It can be used as parallel out to be connected with other pedals or tuner.
Hi-Definition Bass Sound
With the carefully picked quality parts and circuit structure specifically designed for bass, it provides more power of expression with low noise. The internal operating voltage is boosted to 21V to achieve more dynamic range.
Mix Control
By mixing the drive sound and clean sound through the preamp EQ, it transforms and adds nuance to the overdriven sound. Even when it's heavily driven, the bottom end and fullness of the sound will be intact by adding the unaffected clean sound via the mix knob. Also, adding just a little but of drive gain to the clean sound gives a huge, thick, wall of bass style sound. The mix control allows you to create a variety of sound settings from a bit of edge to full out aggressive distortion The drive gain was designed to be used with the clean sound and blend it together, or wild full out distortion sound without the usual muddy bottom end.
EQ Section
The EQ section was designed based on the Dual Bass Station's circuit, Treble, Mid, Bass and we've added Presence control for even more controlover your tone. Presence controls the harmonics and sharpens the contour of the sound.
D.I. OUT
Loaded with the balanced out for more flexibility in both live and recordingenvironments. The Ground lift switch prevents ground loop noise fromother units.
Bypass/Mute switch
The mini toggle switch selects the mode when the pedal is bypassed. When the Bypass mode is selected, it delivers direct sound that bypasses the Vitalizer B circuit. Mute mode is ideal to be used when the player switches or tunes instruments.
