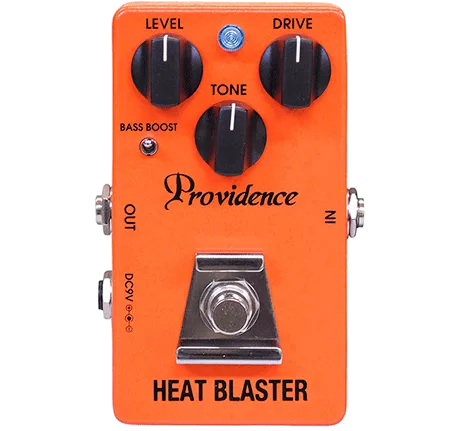

Detailed Information: HEATBLASTER HBL-4

The Heat Blaster HBL-4 became more powerful distortion pedal with rich harmonics.
Its edgy aggressive sound got closer to the high gain tube amp sound while retaining picking nuance vividly.

Bass Boost Switch

Boosts the low-frequency range. This function achieves extra low end impact with humbucking and single-coil pickups.
It's more helpful with single-coil pickups to create tight bottom sound.

Distortion Sound with a Wide Dynamic Range

Internal circuitry doubles the 9-volt supply voltage to 18 volts, achieving wider dynamic range and more amp-like sound than conventional distortion effects.

S.C.T. Circuit (Single Contact True-Bypass)

In a normal True-Bypass circuit, in bypass mode the audio signal passes through two switch contacts. But in the HBL-3, in bypass mode the audio passes through a single contact, thanks to a single contact true-bypass circuit. The result is much higher sound quality and reliability than that provided by previously existing products. The S.C.T. Circuit now makes it possible to further reduce any change or deterioration in sound quality and gives the feeling that the footswitch circuit is removed entirely from your signal chain.

D.C.G. Circuit (Double Contact Grounding)

Due to the adoption of the new double-contact grounding circuit (D.C.G. Circuit), by inserting a monaural plug into the output jack, the shield (sleeve) of the plug provides two points of contact to the pedal's ground circuit. By increasing the area of the point of contact, it becomes more difficult for a loose connection to occur, and provides the additional advantage of improved sound quality.

Multi-function LED

In addition to indicating the pedal's on/off status, the HBL-4 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

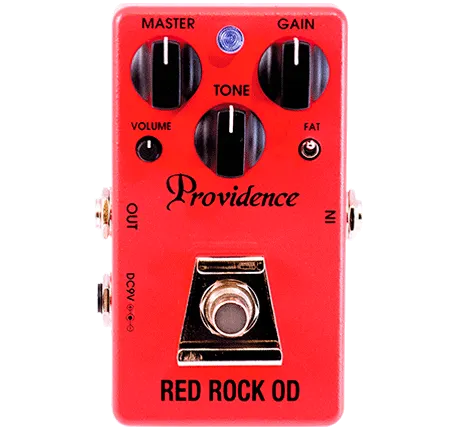

Detailed Information: RED ROCK OD ROD-1

Warm overdrive with plenty of sustain gives guitarists a wide-ranging expressive voice. The tone is a perfect match for guitars with single-coil pickups.

Level compensation for different pickups

An input gain section that is similar to guitar amp circuits allows level compensation for pickups of differing output as well as boost.

FAT Switch

A FAT switch that boosts the low frequencies can be used to deliver an even fatter, more powerful sound.

Wide dynamic range

Internal circuitry doubles the 9-volt supply voltage to 18 volts, achieving wider dynamic range than conventional overdrive effects.

S.C.T. Circuit (Single Contact True-Bypass)

In standard "true bypass" circuits the instrument signal passes through two switch contacts when bypassed. The ROD-1 Single Contact True Bypass configuration ensures that the signal only passes through one switch contact when bypassed, for unmatched signal quality as well as reliability.

D.C.G. Circuit (Double Contact Grounding)

Due to the adoption of the new double-contact grounding circuit (D.C.G. Circuit), by inserting a monaural plug into the output jack, the shield (sleeve) of the plug provides two points of contact to the pedal's ground circuit. By increasing the area of the point of contact, it becomes more difficult for a loose connection to occur, and provides the additional advantage of improved sound quality.

Multi-function LED

In addition to indicating the pedal's on/off status, the ROD-1 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

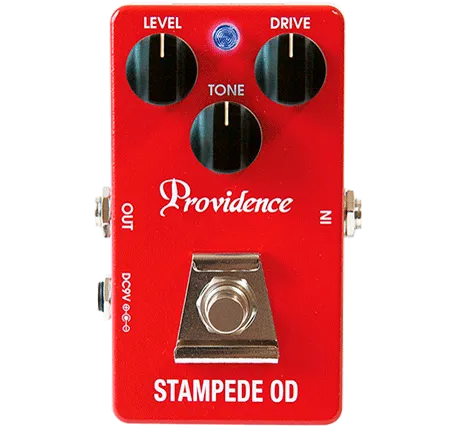

Detailed Information: STAMPEDE OD SOV-2

The STAMPEDE OD SOV-2 is an effector that can naturally drive the guitar without losing its inherent characteristics. Due to a special power supply circuit, the internal operating voltage is boosted from DC9V, making it an overdrive with a wider dynamic range than typical overdrive pedals operating at DC9V. It can create a variety of overdrive sounds, from singing lead tones to thick, present backing sounds.

A wide dynamic range of overdrive sounds

The Providence SOV-2 Stampede OD pedal is designed to deliver natural overdrive without obscuring the inherent characteristics and tone of the guitar being used. It features a special bipolar power supply that powers the internal circuitry with boosted voltage, providing a wider dynamic range than possible with conventional 9-volt powered overdrives.

S.C.T. Circuit (Single Contact True-Bypass)

In standard "true bypass" circuits the instrument signal passes through two switch contacts when bypassed. The SOV-2 Single Contact True Bypass configuration ensures that the signal only passes through one switch contact when bypassed, for unmatched signal quality as well as reliability.

Multi-function LED

In addition to indicating the pedal's on/off status, the SOV-2 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

*In units with a serial number earlier than #2001, the battery will be drained rapidly so the use of an AC adaptor is recommended.

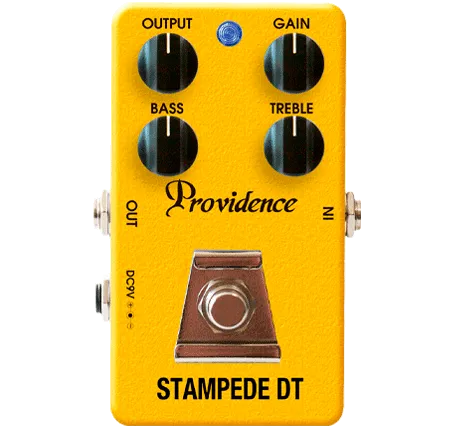

Detailed Information: STAMPEDE DT SDT-3

The STAMPEDE DT SDT-3 is equipped with the low-noise up-converter power supply circuit adopted in the STAMPEDE OD/SOV-2. By boosting the internal operating voltage from DC9V, it possesses a wide dynamic range unachievable with typical DC9V-driven distortion pedals. This reproduces a distortion sound with heavy bass reminiscent of driving a large stack amplifier. Furthermore, by adjusting the GAIN and tone controls, it can create a variety of distortion sounds, from natural crunch to dirty fuzz-like distortion.

2-Band Equalizer

Equipped with a 2-band equalizer for TREBLE and BASS. This EQ allows for tonal correction to match the character of the connected amplifier. Combined with the GAIN control, it produces powerful distortion and a rich sound character.

S.C.T. Circuit (Single Contact True-Bypass)

In a standard True-Bypass circuit, the audio signal passes through two switch circuits when bypassed. However, the STAMPEDE DT's circuit employs a Single Contact True-Bypass circuit, where the signal passes through only one switch circuit when bypassed. As a result, this improves product reliability and achieves even higher sound quality.

D.C.G. Circuit (Double Contact Grounding)

It employs the D.C.G. circuit (Double Contact Grounding Circuit), which connects the effector's ground to the shield side of the mono plug connected to the output jack at two points. Increasing the contact area makes contact failures less likely and is also advantageous in terms of sound quality.

LED Multi-function

The LED on the STAMPEDE DT not only indicates the effect's ON/OFF status but also monitors the battery voltage. When the battery voltage drops to approximately 7V or lower, the LED will start to turn off. While the effect will still output sound in this condition, we recommend replacing the battery to ensure the device operates at its full potential.

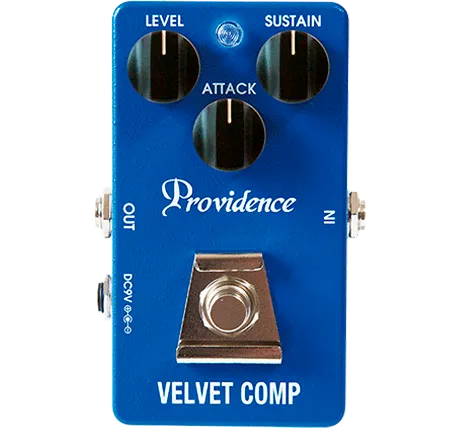

Detailed Information: VELVET COMP VLC-1

As the name suggests, the Providence VLC-1 Velvet Comp provides smooth, lustrous compression. An attack time control makes it possible to match the compression to a range of playing styles from arpeggios through long sustain to crisp chording. The Velvet Comp's wide sustain range gives it extended sonic versatility, delivering outstanding performance whether used as a limiter, as a strong compressor, for clean sound, or with drive.

S.C.T. Circuit (Single Contact True-Bypass)

In standard"true bypass" circuits the instrument signal passes through two switch contacts when bypassed. The VLC-1 Single Contact True Bypass configuration ensures that the signal only passes through one switch contact when bypassed, for unmatched signal quality as well as reliability.

Multi-function LED

In addition to indicating the pedal's on/off status, the VLC-1 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

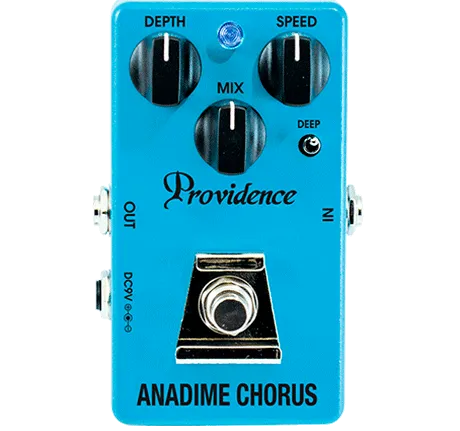

Detailed Information: ANADIME CHORUS ADC-4

The ADC-4 Anadime Chorus is an analog chorus effect that uses a BBD (Bucket Brigade Delay) device. This versatile chorus effect is ideal for everything from moody arpeggios, to flowing chord progressions, to powerful riffs and solos.
Even though the effect output is mono, it delivers a spacious sense of width and depth as well as warmth and thickness that only an analog chorus can achieve.

The 3-way MODE Switch Enables to Create A Sound With Variety

A 3-position DEEP mode switch provides variations in the perceived dimensional depth.

DEEP Switch Enabling Wider Sound Creation

The chorus mode (delay range) now has three settings: DEEP/MID/LIGHT. This allows for a wide range of effects, from the conventional deep chorus with significant pitch change and depth, to a refreshing, light, and subtle chorus.

Mix Function Knob

A MIX control adjusts the mix ratio between the direct and modulated sound. The MIX control can be used in conjunction with the DEPTH control to create fine effect gradations ranging from intense swirl to gentle undulation.

S.C.T. Circuit (Single Contact True-Bypass)

In standard "true bypass" circuits the instrument signal passes through two switch contacts when bypassed. In the Anadime Chorus the signal only passes through one switch contact when bypassed (Single Contact True Bypass), for unprecedented signal quality as well as reliability.

D.C.G. Circuit (Double Contact Grounding)

A Double Contact Grounding Circuit ensures that the sleeve of the plug inserted into the output jack is grounded at two contact points. Increased ground contact area minimizes the possibility of intermittent contact, while also contributing to maximum sonic quality.

Multi-function LED

In addition to indicating the pedal's on/off status, the ADC-4 LED provides effective visual battery power monitoring. When the battery voltage drops below 7 volts the LED will become dimmer and begin to go out. The effect will still operate at this voltage, but to ensure optimum performance the battery should be replaced as soon as possible.

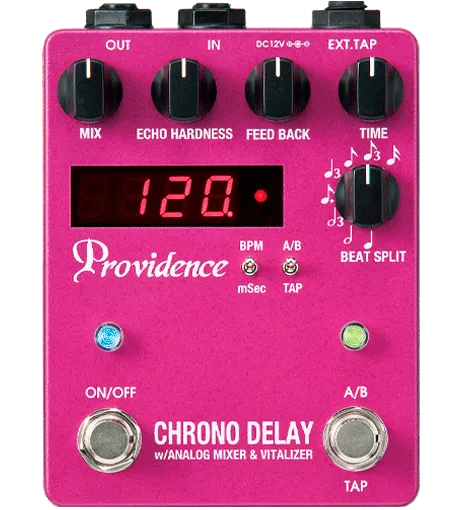

Detailed Information: CHRONO DELAY DLY-4

The CHRONO DELAY features a simple interface that allows fast, intuitive control.
Delay time is adjustable from 1 to 2700 milliseconds. The A/B preset memory allows two different delay times settings to be memorized and recalled via the footswitch as needed.

Switchable Display Mode

Delay time can be displayed in milliseconds (mSec) or beats per minute (BPM). The BPM display is not simply a "rough estimate. " BPM delay times are displayed with metronome accuracy.

Tap Tempo

The delay time is precisely set according to the tempo tapped on the TAP switch.

A/B Preset Memory

The A/B preset memory allows two different delay times settings to be memorized and recalled via the footswitch as needed.

BEAT SPLIT

With the specified delay time as a quarter-note reference, seven delay time variations ranging from half notes to eighth-note triplets can be directly selected via the BEAT SPLIT knob. Rhythm-based delay time settings that previously required tedious calculations can now be made in an instant.

Analog Circuitry Featuring the VITALIZER

Both the VITALIZER that prevents degradation of the direct signal and the mixer that combines the direct signal with the delay signal are analog circuits that have been designed and built to the highest possible sonic standards.

Simple Operation

The DLY-4 CHRONO DELAY features a simple interface that allows fast, intuitive control.

External TAP Input

A momentary (non-latching) type footswitch can be connected to the EXT.TAP jack to allow remote tap delay operation. When this function is used the A/B - TAP footswitch on the CHRONO DELAY unit is dedicated to A/B preset switching, so that tap delay and A/B preset switching operation are simultaneously available via separate footswitches.

Note Regarding Power Supply Unit for Chrono Delay.

We strongly recommend that all customers use the dedicated AC adapter supplied with the Chrono Delay DLY-4 in the original package. It may be possible that you did not receive the dedicated AC adapter for the Chrono Delay DLY-4 if you purchased it through an unofficial distributor, and using another company's power supply may void the warranty.
Supplied AC Adapter Model Number : PAP-712DCJ for North America and Japan, PAP-712DCU and MG81C for UK, PAP-712DCE for Europe.
