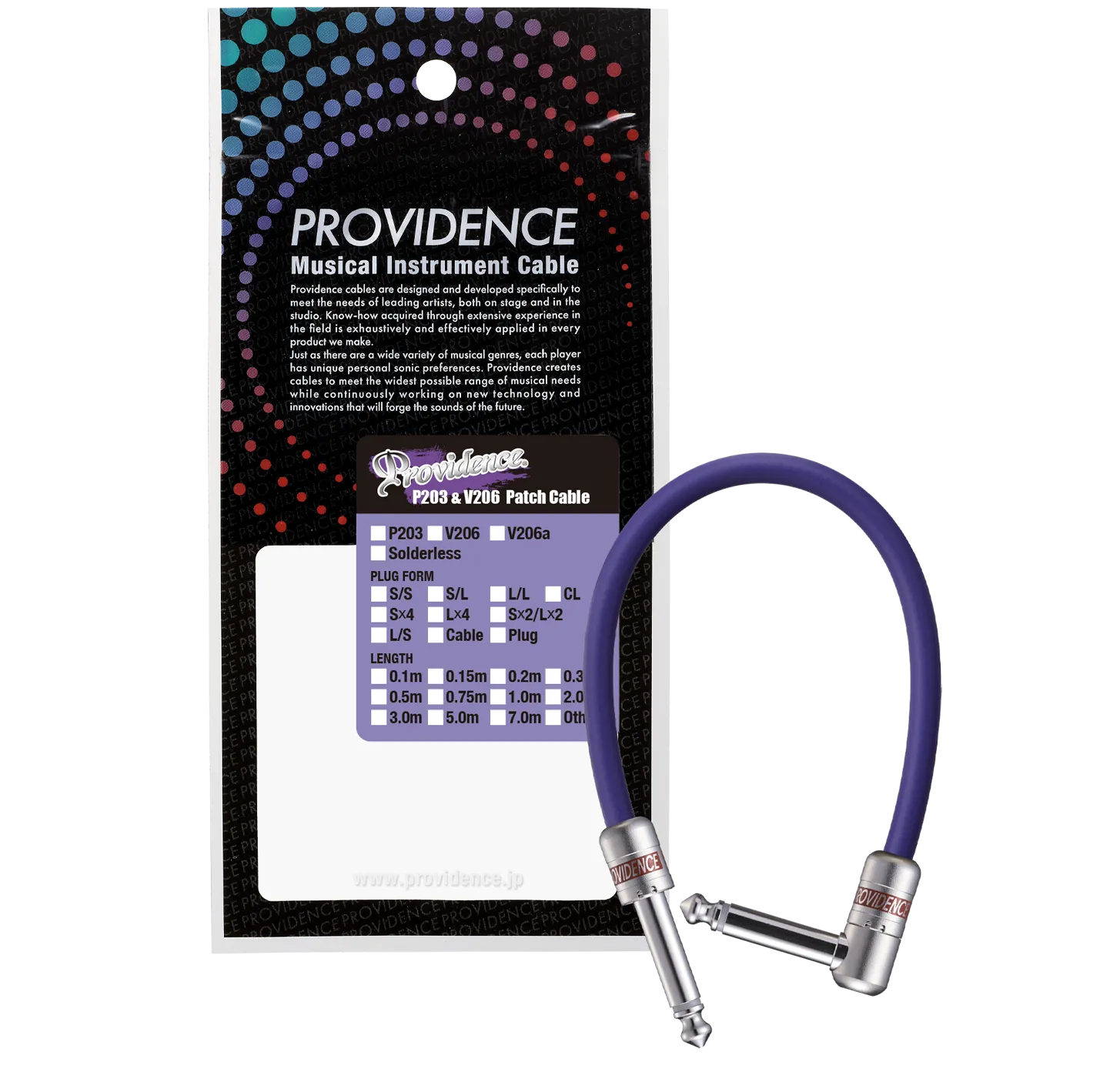

Providence P203 The Patch Cable

P203

Platinum Link Patch Cable


If you choose for high sound quality and noise resistance

The world's "The Purple Cable," developed exclusively for patches. Highly flexible with a hybrid structure, it shuts out electromagnetic noise with an ultra-dense braided shield.

Specifically designed for patching between effect pedals and similar equipment, the P203 model offers low-noise transmission in a lightweight, flexible cable.

  • ・Providence with NCS3 OFC PATCH CABLE for Effects
  • ・Conductor Size : 0.25mm²
  • ・Construction (No./mm) : 50/0.08OFC
  • ・Diameter : 0.65mm
  • ・Inner Insulation Thickness : 1.18mm (±0.05)
  • ・Diameter : 3.00mm
  • ・Outer Insulation-Thickness : 0.25mm (±0.05)
  • ・Diameter : 3.50mm
  • ・Inner Jacket Thickness : 0.25mm
  • ・Diameter : 4.00mm
  • ・Shield Diameter : 4.50mm
  • ・Jacket Thickness : 0.75mm (±0.10)
  • ・Diameter : 6.00mm
  • ・Maximum conductor resistance (20˚C) : 70.70≧ (Ω/km)
  • ・Capacitance (1kHz) : Approx.70 (pF/m)
  • ・Plug : NP-21 and NP-21L (L-type plug)
  • ・Made in Japan
Read More

Detailed Information: P203

The Platinum Link series P203 model combines an NCS3 OFC conductor with a hybrid insulator consisting of NAP ELASTOMER and special polyethylene materials. The application of innovative Providence technology throughout results in an outstanding blend of high sound quality and flexibility – characteristics that are rarely seen together in a single cable. Since the P203 was designed specifically for patching between effect units and between effect units and amplifiers, for example, sonic evaluation was carried out with 1-meter cable lengths rather than the longer samples used for standard cables.
Unlike conventional patch cables, which are normally nothing more than short cables that can degrade frequency characteristics and result in a thin sound, the P203 model achieves excellent signal transmission accuracy and quality, and even helps to improve signal quality when used with compact effect pedals that can have a negative impact on the direct sound.
Of course these same characteristics are also an advantage when patching between rack-mounted effects and preamplifiers. A convenient lineup of lengths from 0.1 meter to 0.5 meter is offered in 5 centimeter increments, so you can choose cables off the shelf for optimum patching with any rack or pedal-board system.

Secure and Snug-Fitting Plugs

Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

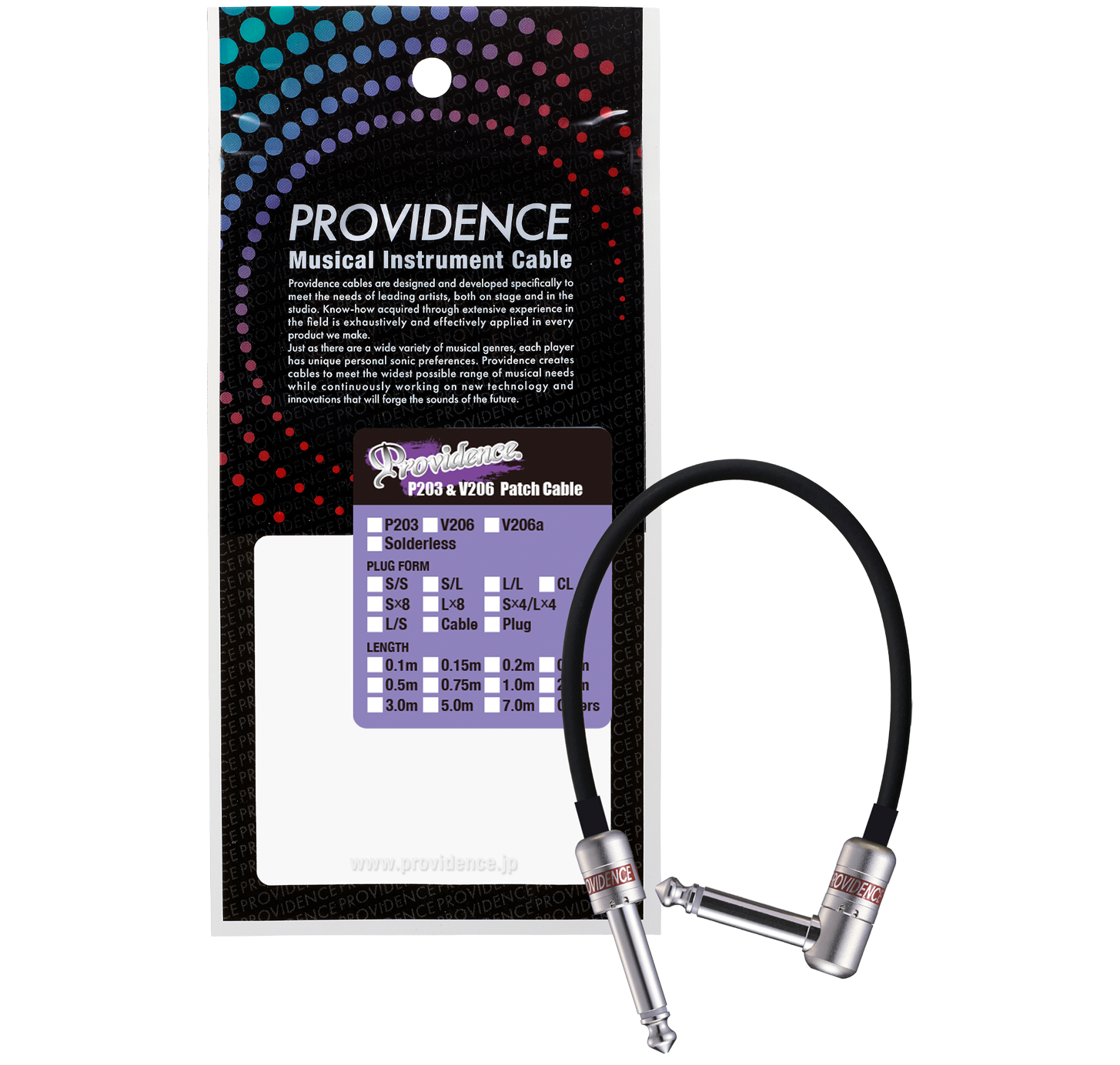

V206

V206

Platinum Link Patch Cable


World's smallest class solder-type plug and 4mm diameter cable save space and weight on your board.

The V206 model patch cable features Providence's unique VLK1 OFC conductor configuration, a tin-plated ultra-dense braided shield, and a structure using carbon-impregnated conductive vinyl. With a diameter of 4mm, it is thinner and more flexible than standard cables, yet reliably shuts out electromagnetic noise. It firmly transmits picking nuances while delivering a tight, powerful sound with excellent projection.

  • ・Providence with VLK1 OFC
  • ・Conductor Size : 0.18mm²
  • ・Construction (No./mm) : 16/0.12 OFC
  • ・Diameter : 0.55mm
  • ・Insulation Thickness : 0.98mm (±0.05)
  • ・Diameter : 2.50mm
  • ・Inner Jacket Thickness : 0.25mm
  • ・Diameter : 3.00mm
  • ・Shield Diameter : 3.50mm
  • ・Jacket Thickness : 0.50mm (±0.05)
  • ・Diameter : 4.00mm
  • ・Maximum conductor resistance (20˚C) : 100.00≧ (Ω/km)
  • ・Capacitance (1kHz) : Approx.160 (pF/m)
  • ・Plug : NP-21 and NP-21L (L-type plug)
  • ・Made in Japan
Read More

Detailed Information: V206

The V206 model patch cable features Providence's unique VLK1 OFC conductor configuration, a tin-plated ultra-dense braided shield, and a structure using carbon-impregnated conductive vinyl. With a diameter of 4mm, it is thinner and more flexible than standard cables, yet reliably shuts out electromagnetic noise. It firmly transmits picking nuances while delivering a tight, powerful sound with excellent projection.
While noise countermeasures are often neglected in favor of flexibility in conventional products, the V206 model shuts out electromagnetic noise by using a braided shield and carbon-impregnated conductive vinyl. It protects your important sound from floor tapping noise, high-frequency noise from TVs and radios, and noise generated by motors.

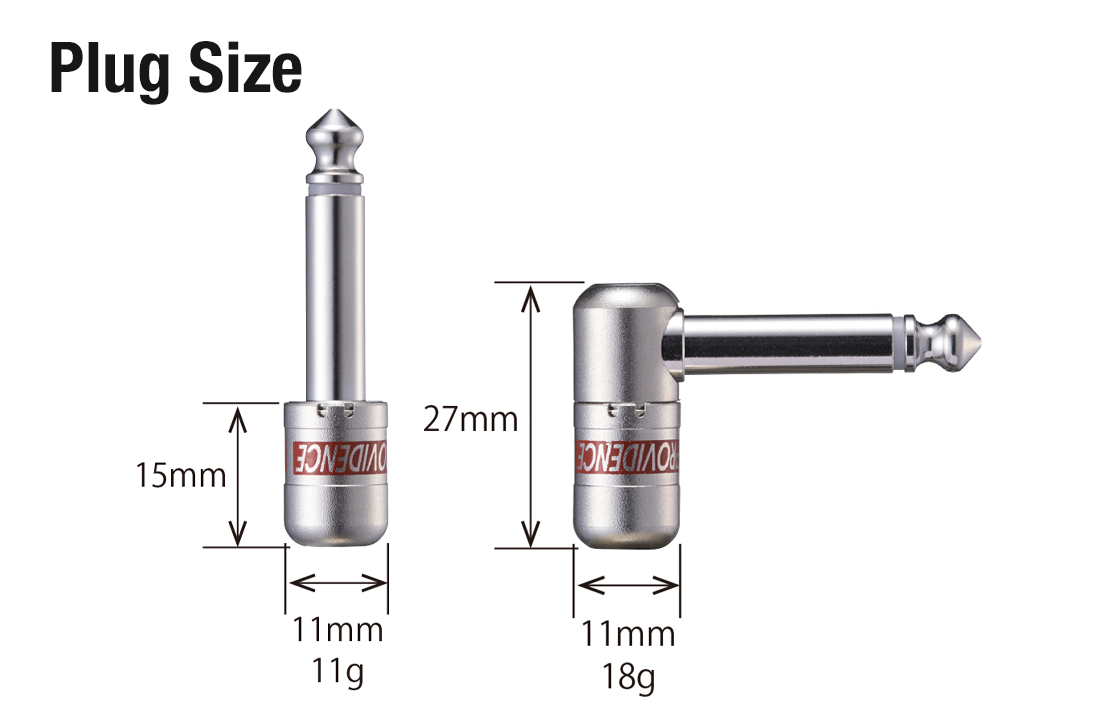

The nickel-plated NP-21 and NP-21L (L-type) plugs, which are among the smallest in the world, are effective in saving space and reducing weight for effector boards that you want to keep as compact as possible. Moreover, since they are soldered, there is less risk of sound quality degradation and contact failure troubles common with solderless types, providing peace of mind.
Developed with the idea that "artists can concentrate on playing without feeling stress," the patented "anti-loosening" function prevents the plug shell from loosening, which tends to happen during tour transportation.

Secure and Snug-Fitting Plugs

Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

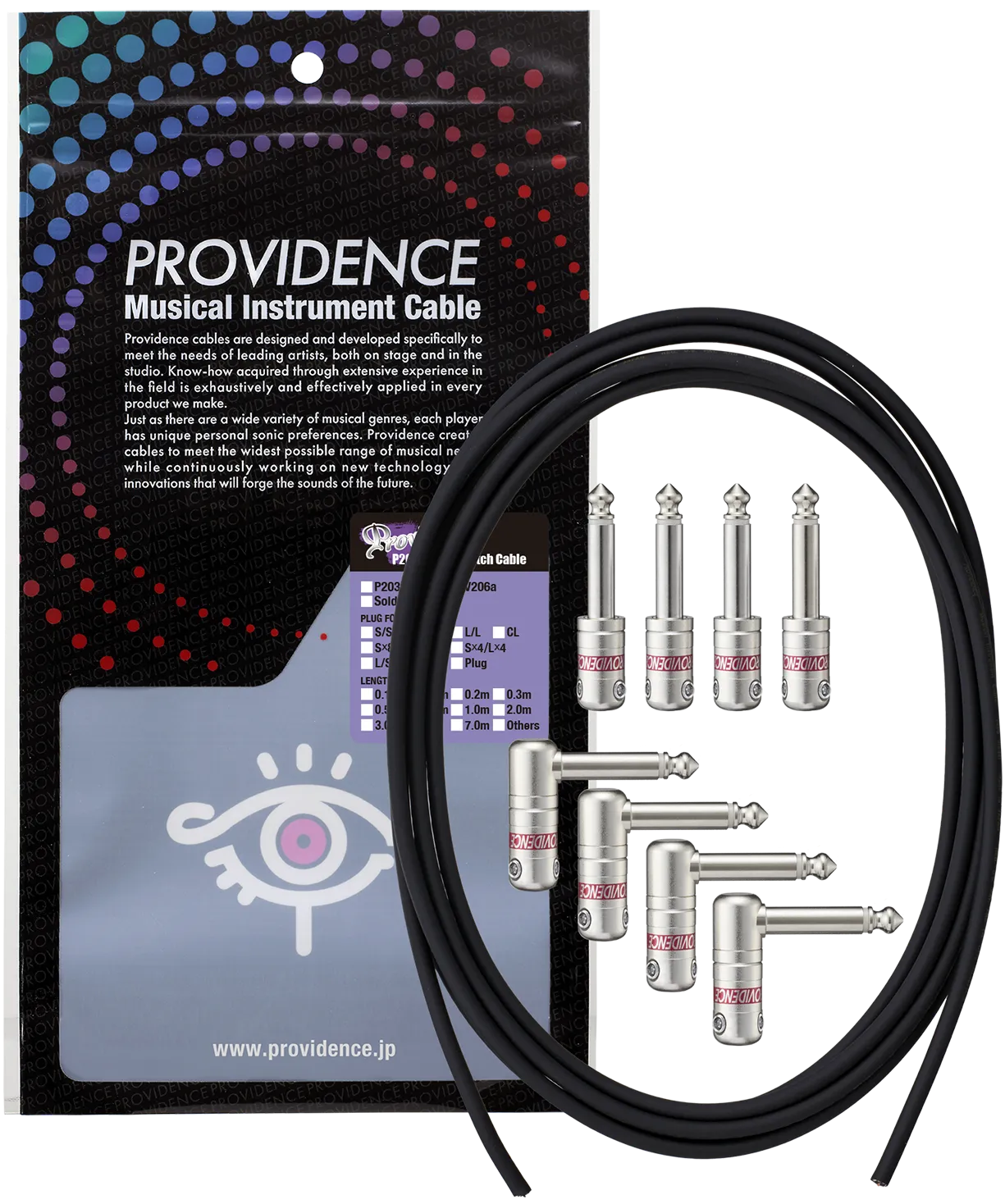

Providence V206 Vital Link Solderless Patch Cable Kit

V206 Solderless Half Set

Platinum Link Solderless Cable


Space-saving and lightweight for your board

Prevents trouble with two screws. Tight and firm sound. This solderless type is even more compact than before, helping to save space and reduce weight on your effector board.

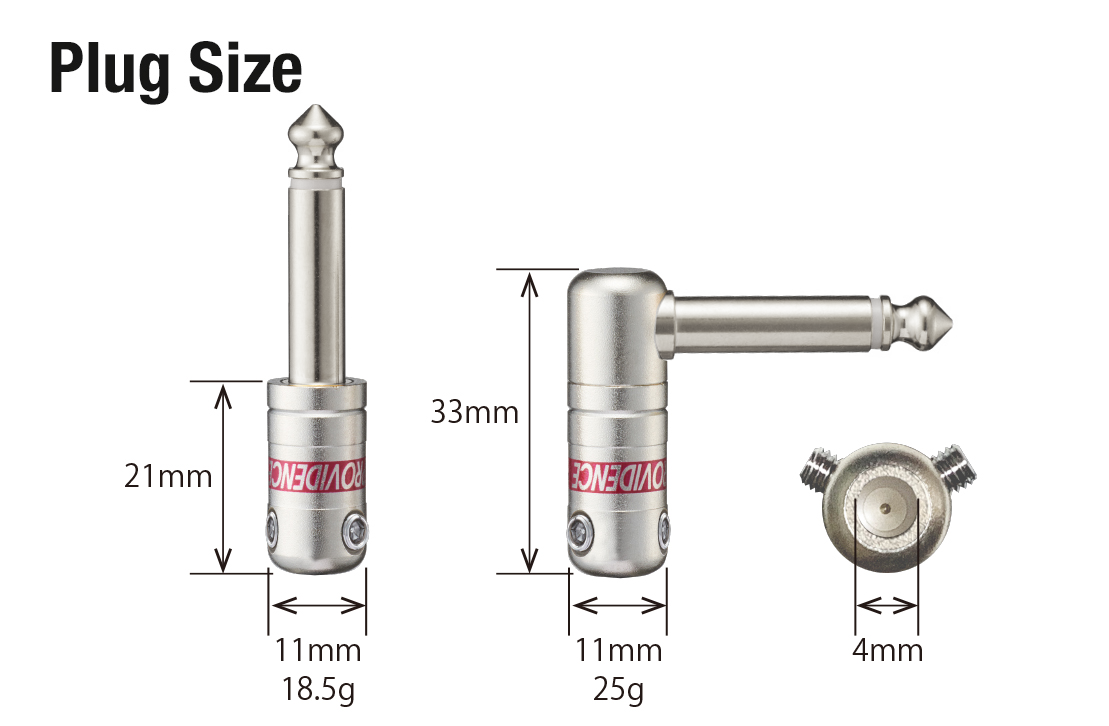

The popular solderless plug of the V206 model has been renewed. The newly designed solderless plugs NP-24 (S plug) and NP-24L (L plug) are even more compact, helping to save space and weight within the pedalboard now.

  • ・Providence with VLK1 OFC
  • ・Conductor Size : 0.18mm²
  • ・Construction (No./mm) : 16/0.12 OFC
  • ・Diameter : 0.55mm
  • ・Insulation Thickness : 0.98mm (±0.05)
  • ・Diameter : 2.50mm
  • ・Inner Jacket Thickness : 0.25mm
  • ・Diameter : 3.00mm
  • ・Shield Diameter : 3.50mm
  • ・Jacket Thickness : 0.50mm (±0.05)
  • ・Diameter : 4.00mm
  • ・Maximum conductor resistance (20˚C) : 100.00≧ (Ω/km)
  • ・Capacitance (1kHz) : Approx.160 (pF/m)
  • ・Plug : NP-24G and NP-24GL (L-type plug)
  • ・Made in Japan
Read More

Detailed Information: V206

A VLK1 OFC conductor and tin-plated super-high-density braided shield plus carbon-impregnated conductive vinyl sheath result in a thin, flexible cable that offers excellent electromagnetic noise rejection. Picking nuances come through with clarity in an overall sound that is tight and powerful.
Short nickel-plated shaft, tightening the cable with two screws on the plug cap. By tightening with two screws, it is possible to prevent troubles such as the cable coming out of the plug, Also to eliminate the contact failure.

Secure and Snug-Fitting Plugs

Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

Providence V206 Vital Link Solderless Patch Cable Kit

V206 Solderless Full Set

Platinum Link Solderless Cable


Space-saving and lightweight for your board

Prevents trouble with two screws. Tight and firm sound. This solderless type is even more compact than before, helping to save space and reduce weight on your effector board.

The popular solderless plug of the V206 model has been renewed. The newly designed solderless plugs NP-24 (S plug) and NP-24L (L plug) are even more compact, helping to save space and weight within the pedalboard now.

  • ・Providence with VLK1 OFC
  • ・Conductor Size : 0.18mm²
  • ・Construction (No./mm) : 16/0.12 OFC
  • ・Diameter : 0.55mm
  • ・Insulation Thickness : 0.98mm (±0.05)
  • ・Diameter : 2.50mm
  • ・Inner Jacket Thickness : 0.25mm
  • ・Diameter : 3.00mm
  • ・Shield Diameter : 3.50mm
  • ・Jacket Thickness : 0.50mm (±0.05)
  • ・Diameter : 4.00mm
  • ・Maximum conductor resistance (20˚C) : 100.00≧ (Ω/km)
  • ・Capacitance (1kHz) : Approx.160 (pF/m)
  • ・Plug : NP-24G and NP-24GL (L-type plug)
  • ・Made in Japan
Read More

Detailed Information: V206

A VLK1 OFC conductor and tin-plated super-high-density braided shield plus carbon-impregnated conductive vinyl sheath result in a thin, flexible cable that offers excellent electromagnetic noise rejection. Picking nuances come through with clarity in an overall sound that is tight and powerful.
Short nickel-plated shaft, tightening the cable with two screws on the plug cap. By tightening with two screws, it is possible to prevent troubles such as the cable coming out of the plug, Also to eliminate the contact failure.

Secure and Snug-Fitting Plugs

Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.
