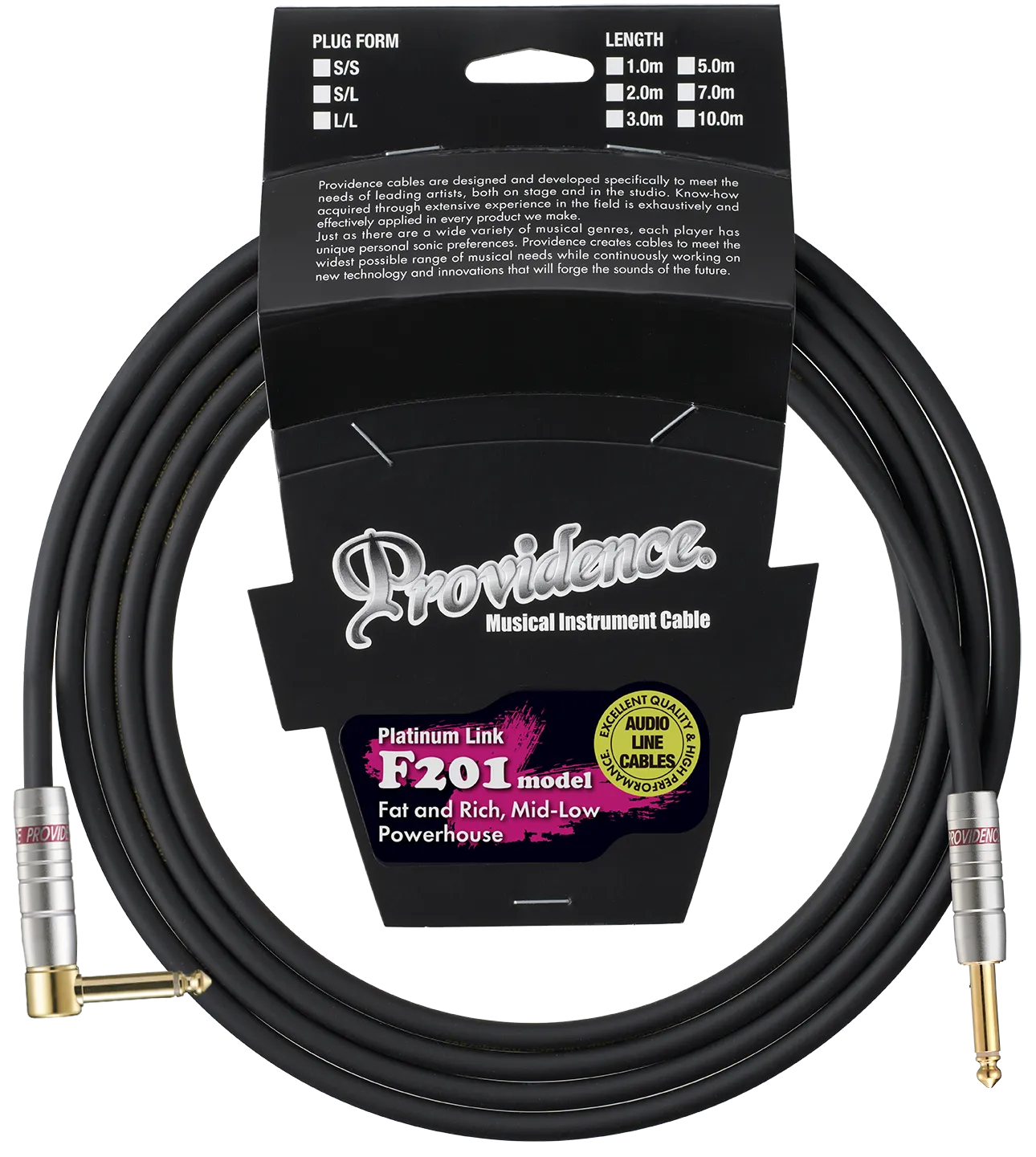

F201
Platinum Link Guitar/Bass Cable
FAT signal covering mid to low frequency.
Recommended for Jazzy Clean to Crunch, recording as well through an audio interface with High noise resistance.
The naturally fat sound of this cable is a perfect choice for rock genres as well as all-around playing in a variety of styles.
- ・Providence with NCW1 OFC
- ・Conductor Size : 0.75mm²
- ・Construction (No./mm) : 150/0.08OFC
- ・Diameter : 1.14mm
- ・Insulation-Thickness : 1.43mm (±0.05)
- ・Diameter : 4.00mm
- ・Innerr Jacket-Thickness : 0.25mm
- ・Diameter : 4.50mm
- ・Shield-Diameter : 5.00mm
- ・Jacket Thickness :0.90mm (±0.10)
- ・Diameter : 6.80mm
- ・Maximum conductor resistance (20°C) : 23.60≧ (Ω/km)
- ・Capacitance (1kHz) : Approx.100 (pF/m)
- ・Plug : NP-11G and NP-11GL (L-type plug)
- ・Made in Japan
Detailed Information: F201
Most high-end cables are designed to achieve the best possible basic audio performance, but that approach doesn't always result in sound that supports the player's artistic intent. The F201 model uses an NCW1 OFC conductor in an original Providence configuration that eliminates unwanted artifacts that often occur in conventional high-end cables, delivering solid, natural lows that contribute to an incredibly fat overall sound while retaining the character of the player's sound in full. This cable also resists the high-frequency loss and thin sound that usually occurs in long cable runs.
A super-high-density braided shield plus carbon-impregnated conductive vinyl sheath effectively suppress mechanical noise when the cable is moved around on stage, while shutting out electromagnetic noise from high-frequency TV and radio interference as well as noise from motors and similar sources.
Secure and Snug-Fitting Plugs
Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

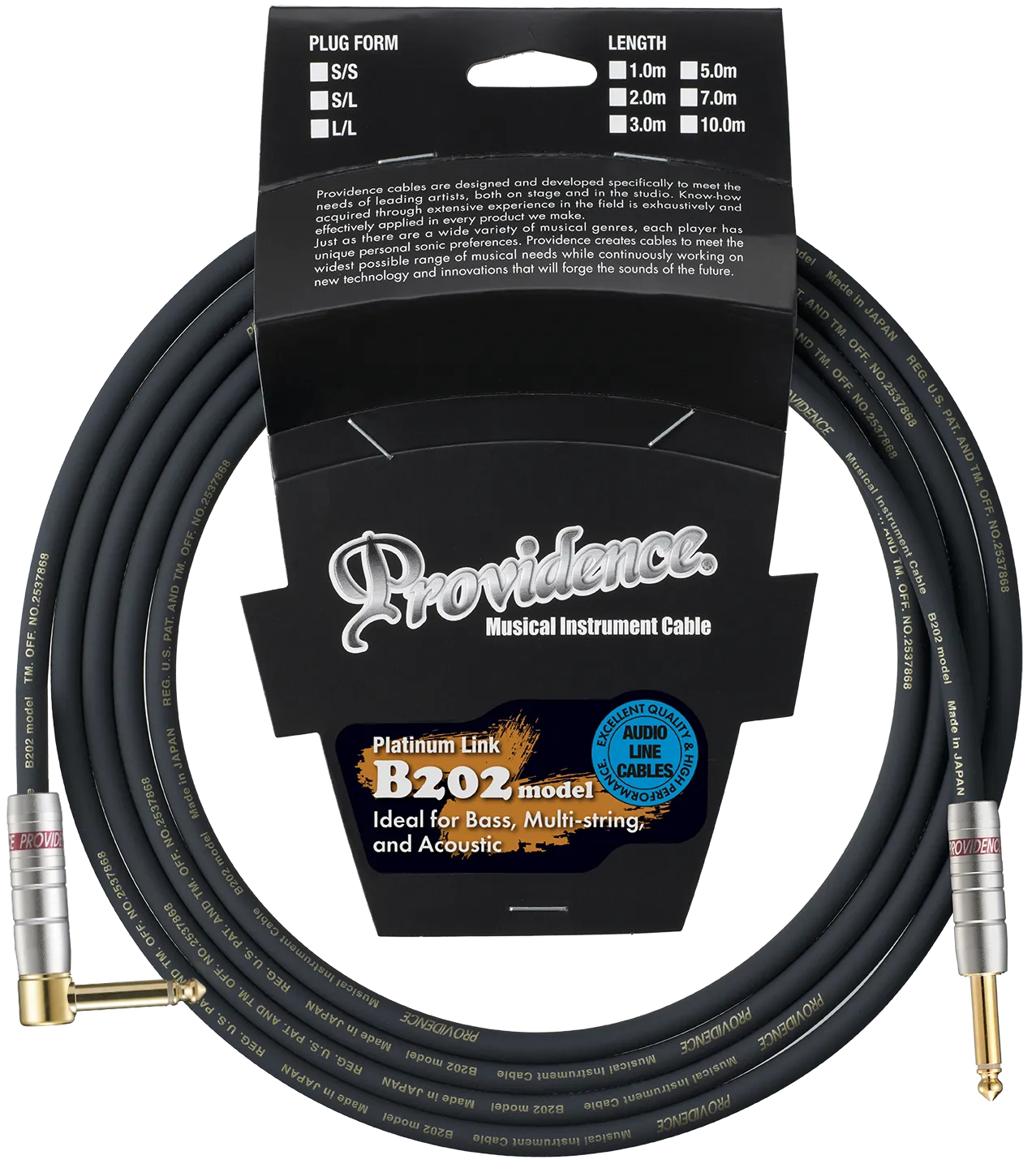

B202
Platinum Link Guitar/Bass Cable
Designed for Bass players, 8 strings guitars, who needs the super bottom.
Recommended for recording through an audio interface with High noise resistance.
The ultimate bass guitar cable. Wide-range with an enhanced low-mid range. The B202 model delivers natural, low-noise performance with emphasis on the lower frequencies.
- ・Providence with LINEAR BASS'O OFC for Electric Bass & Guitar
- ・Conductor Size : 0.25mm²
- ・Construction (No./mm) : 50/0.08OFC
- ・Diameter : 0.65mm
- ・Insulation Thickness : 1.93mm (±0.05)
- ・Diameter : 4.50mm
- ・Inner Jacket-Thickness : 0.25mm
- ・Diameter : 5.00mm
- ・Shield-Diameter : 5.50mm
- ・Jacket-Thickness : 0.75mm (±0.10)
- ・Diameter : 7.00mm
- ・Maximum conductor resistance (20°C) : 70.70≧ (Ω/km)
- ・Capacitance (1kHz) : Approx.55 (pF/m)
- ・Plug : NP-11G and NP-11GL (L-type plug)
- ・Made in Japan
Detailed Information: B202
With an original Providence structure and Linear Bass'o OFC conductor, the Platinum Link B202 model achieves solid low-mid response that is beyond the capabilities of conventional guitar cables.
The superior bass response of this cable is ideal for use with standard 4-string bass guitars, but it offers the extended range required for 5-string and 6-string types as well.
The B202 model is also an excellent choice for guitarists who down-tune their instruments or use heavy-gauge strings for a bottom-heavy sound. The low-mid are essential for great electro-acoustic guitar tone too, and the B202 model delivers tonal range and quality that can dramatically enhance their sound. Although this cable offers extended low-mid response, high-frequency loss and sound thinning are minimal even with long cable runs.
Secure and Snug-Fitting Plugs
Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

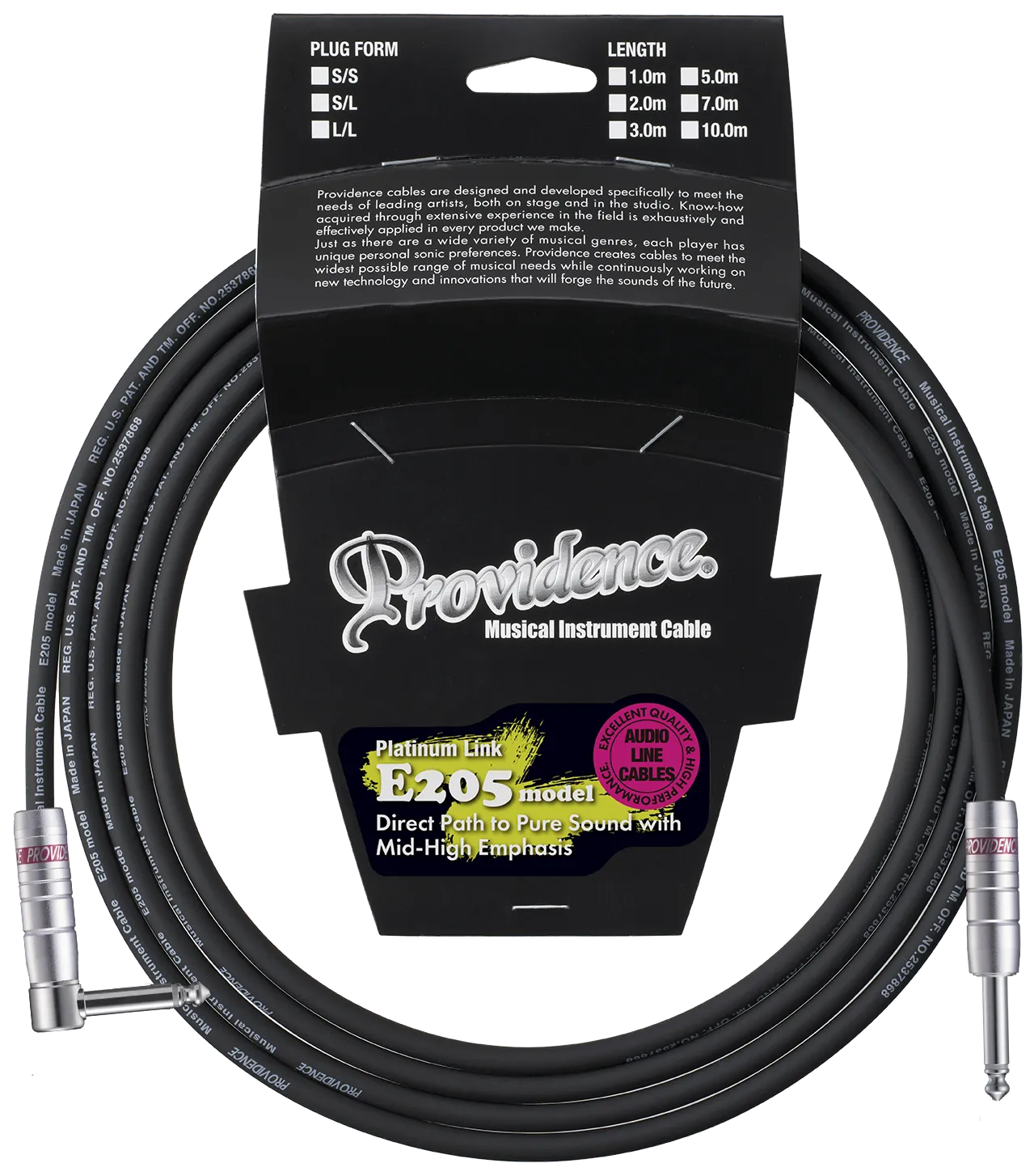

E205
Platinum Link Guitar/Bass Cable
A vintage flat tone that delivers your fingertips.
Recommended for recording through an audio interface with High noise resistance.
The E205 model has been painstakingly designed to faithfully transmit the mature tone of fine electric guitars and basses as well as the most delicate nuances of picking attack.
- ・Providence with NVW1 OFC
- ・Conductor Size : 0.18mm²
- ・Construction (No./mm) : 16/0.12OFC
- ・Diameter : 0.55mm
- ・Insulation Thickness : 0.98mm (±0.05)
- ・Diameter : 2.50mm
- ・Inner Jacket Thickness : 0.25mm
- ・Diameter : 3.00mm
- ・Shield-Diameter : 3.50mm
- ・Jacket Thickness : 1.45mm (±0.10)
- ・Diameter : 6.40mm
- ・Maximum conductor resistance (20˚C) : 100≧ (Ω/km)
- ・Capacitance (1kHz) : Approx.140 (pF/m)
- ・Plug : NP-11 and NP-11L (L-type plug)
- ・Made in Japan
Detailed Information: E205
The E205 model is a cable developed with the aim of faithfully transmitting the subtly dry sound nuances of electric guitars and basses, as well as the attack of the sound during picking.
The Platinum Link series E205 model has been painstakingly designed to faithfully transmit the mature tone of fine electric guitars and basses as well as the most delicate nuances of picking attack. The conductor is an original NVW1 OFC type that allows the sweetest, most desirable harmonics produced when playing rhythm or chord styles to come through for beautifully balanced tone, particularly when using natural amplifier overdrive. Those appealing characteristics are retained even when the guitar volume control is turned down for background playing. For optimum manageability on stage this cable has been made extra flexible, but it still retains top electromagnetic noise rejection quality.
Secure and Snug-Fitting Plugs
Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.

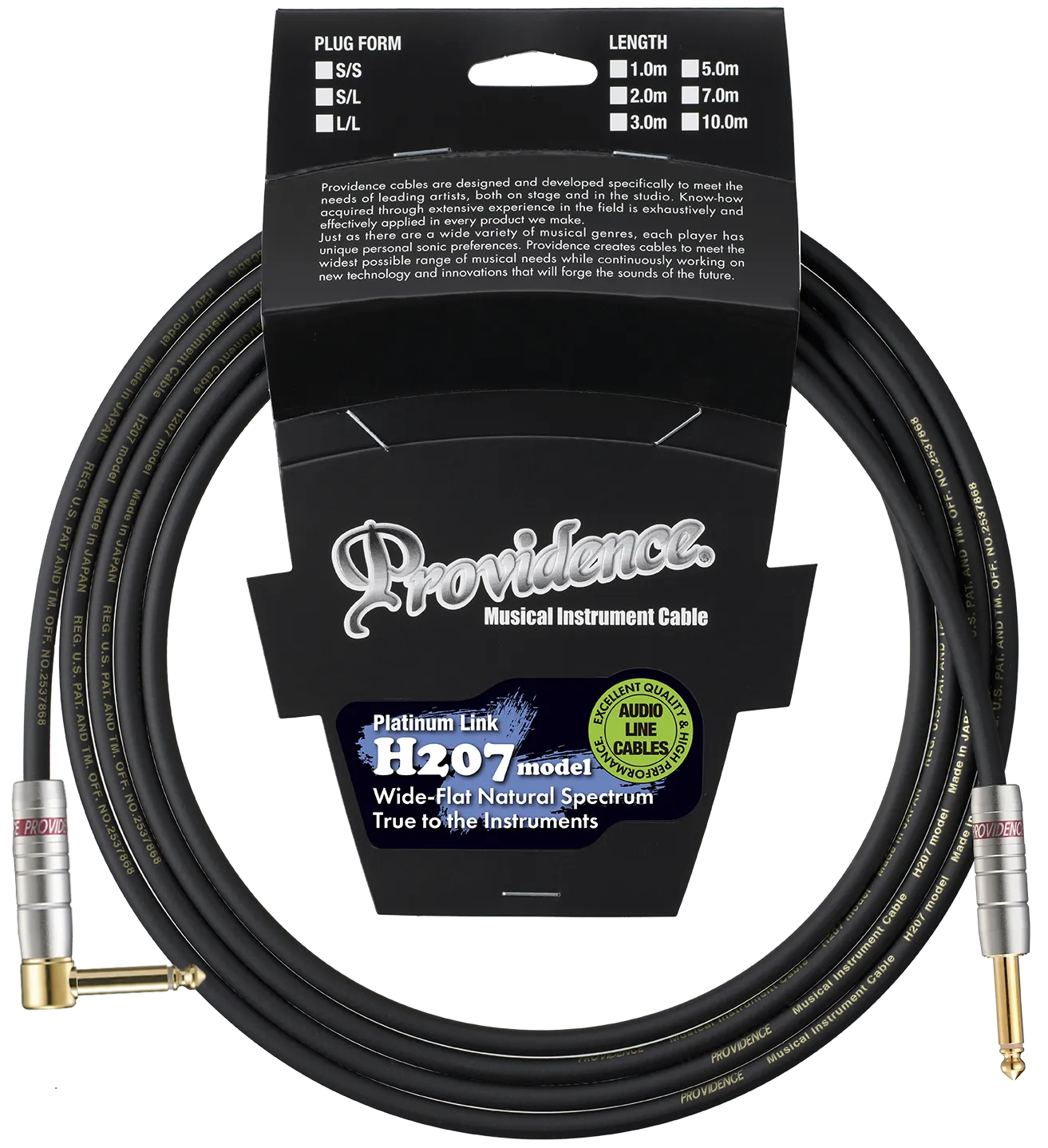

H207
Platinum Link Guitar/Bass Cable
Wide, flat, the natural tone from clean to drive sound.
Super low capacitance as using the same cable with P203, Recommended for recording through an audio interface with High noise resistance.
Highly regarded by some of the world’s most distinguished players! This cable was created at the request of artists who wanted full-length version of our most popular P203 patch cable.
- ・Providence with NCS3 OFC
- ・Conductor Size (No./mm) : 0.25mm²
- ・Construction : 50/0.08OFC
- ・Diameter : 0.65mm
- ・Inner Insulation-Thickness : 1.18mm (±0.05)
- ・Diameter : 3.00mm
- ・Outer Insulation-Thickness : 0.25mm (±0.05)
- ・Diameter : 3.50mm
- ・Inner Jacket-Thickness : 0.25mm
- ・Diameter : 4.00mm
- ・Shield-Diameter : 4.50mm
- ・JacketThickness : 0.75mm (±0.10)
- ・Diameter : 6.00mm
- ・Maximum conductor resistance (20˚C) : 70.70≧ (Ω/km)
- ・Capacitance (1kHz) : Approx.70 (pF/m)
- ・Plug : NP-11G and NP-11GL (L-type plug)
- ・Made in Japan
Detailed Information: H207
The H207 model is derived from our P203 patch cable that was originally designed to offer the best possible blend of sound quality and flexibility. In addition to accolades from some of the world's most noted guitarists, we were inundated with requests for full-length versions of the P203 for normal guitar cable use. That demand resulted in the development of the H207 model, employing the same NCS3 OFC conductor plus a hybrid insulator that combines NAP elastomer and special polyethylene materials.
The hybrid insulator is the reason for the "H" in the model name. Rather than the purple outer cladding of the P203, the H207 model features a black cladding that actually contributes to improved bass response. A super-high-density braided shield plus carbon-impregnated conductive vinyl sheath effectively suppress mechanical noise when the cable is moved around on stage, while shutting out electromagnetic noise from high-frequency TV and radio interference as well as noise from motors and similar sources.
Secure and Snug-Fitting Plugs
Providence's original NP series phone plugs are made in Japan*, with both the plug body and shell machined from brass. Many stages of their production require manual labor, making them essentially handcrafted products. The plug shaft is φ6.3mm. There is little variation between products, and they fit snugly into the inch-sized (1/4 inch) jacks used in most instruments like guitars, making them difficult to unplug and providing more contact points between the plug and jack, which also positively affects sound quality.
